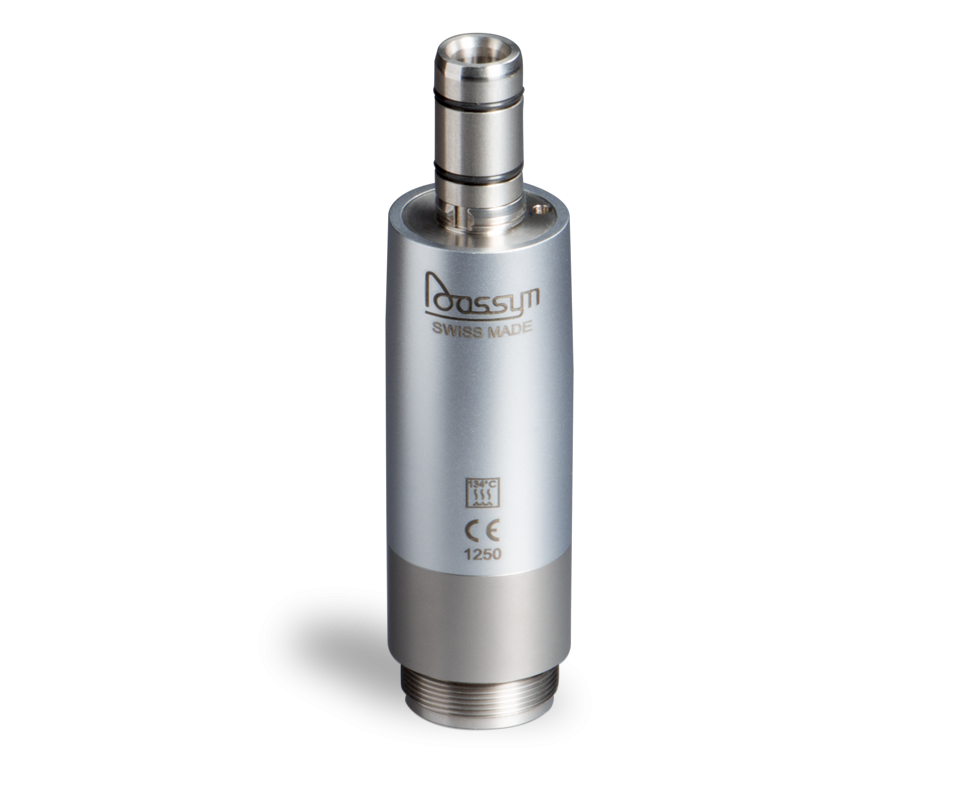

MO-33-LFA

Application on General Dentistry / Podiatry
Brushless/sensorless motor, with light (LED), fluid, sterilizable

Ref. 106.02.000

Maximal speed 40000 rpm
Minimal speed 1000 rpm
Torque at maximal allowe current 3.5 Ncm
Warranty 3 years
Lenght 44.7 mm
Diameter 21.8 mm
Nose 21.5 mm
Technical data sheet
Dassym_33_motors_brushless_dentistry

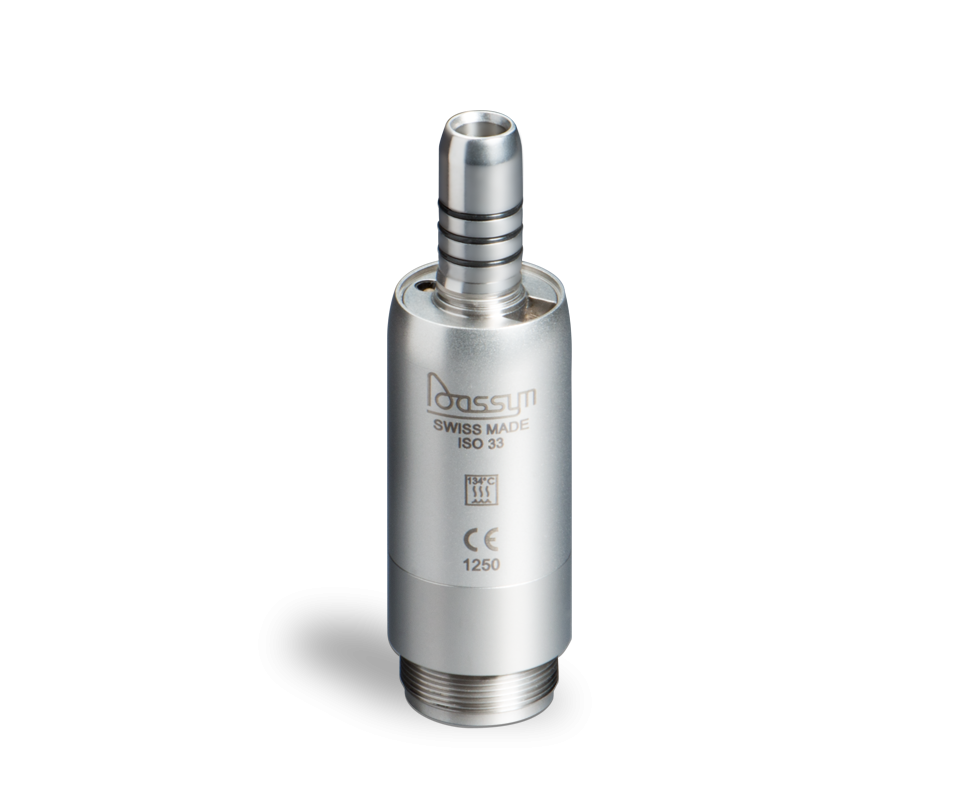

MO-93-LFA

Application on General Dentistry and  Endodontics
Brushless motor with Hall sensors, with light (LED), fluid, sterilizable

Ref. 107.00.000

Maximal speed 40000 rpm
Minimal speed 80 rpm
Torque at maximal allowe current 3.5 Ncm
Warranty 3 years
Lenght 44.7 mm
Diameter 21.8 mm
Nose 21.5 mm
Technical data sheet
Dassym-33-93_motors_brushless_dentistry

MO-94-A / LA

Application on Implantology and Surgery
Brushless  motor with Hall sensors,  sterilizable, with and without LED light

Ref. 102.05.000 / Ref. 102.08.000

Maximal speed 40000 rpm
Minimal speed 80 rpm
Torque at maximal allow current 5 Ncm
Warranty 3 years
Lenght 56.7 mm
Diameter 21.8 mm
Nose 21.5 / 31.5 mm
Technical data sheet
Dassym-94_motors_brushless_dentistry
